用途 Purpose

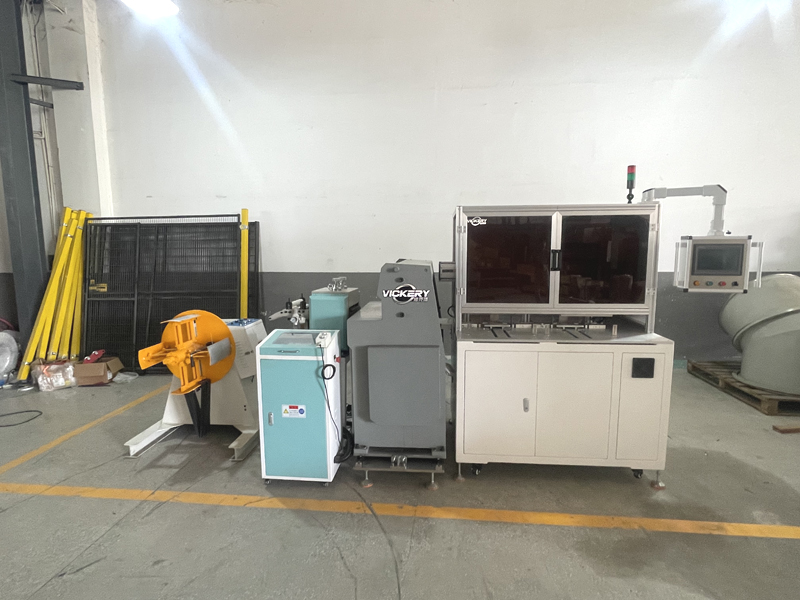

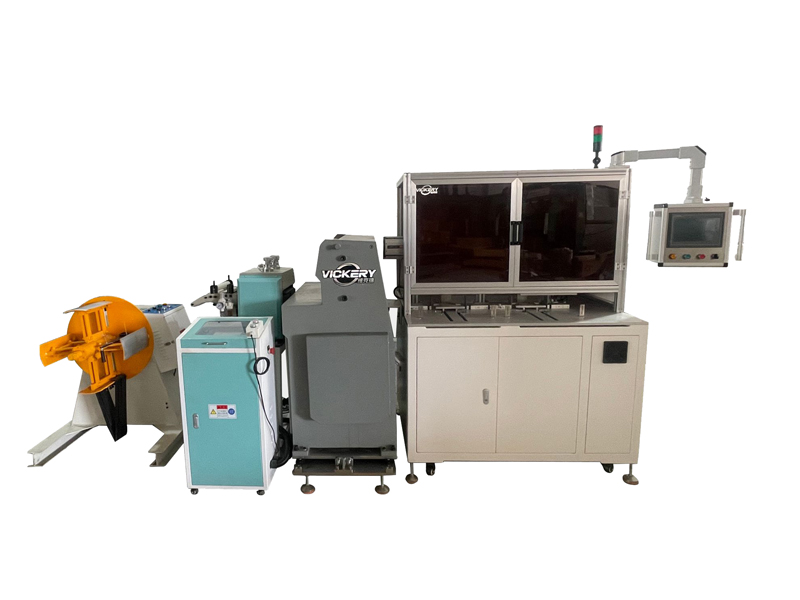

本设备用于陶瓷基板铜片按不同规格拆切码垛的工艺设备。
This equipment is used for the process of disassembling, cutting, and stacking copper sheets on ceramic substrates according to different specifications.
This equipment is used for the process of disassembling, cutting, and stacking copper sheets on ceramic substrates according to different specifications.
主要技术指标 Specification
| 测试项目 | 详情 |
|---|---|
| 型式 Type |
双工位；（放料，送料，拆切，移载，整形，码垛） Dual workstation; (Material feeding, cutting, Transplanting, shaping, palletizing) |
| 总功率 Total power |
12KW |
| 用气 Gas consumption |
0.3 - 0.6Mpa |
| 适用规格 Applicable specifications |
切割长度 184mm - 200mm（可设定），精度正负 0.3mm 宽度 132mm - 145mm（改变产品长度或宽度需要调整夹紧位置） 厚度 0.127 - 1.0（可设定） Cutting length 184mm - 200mm (adjustable), accuracy plus or minus 0.3mm Width 132mm - 145mm (changing the length or width of the product requires adjusting the clamping position) Thickness 0.127 - 1.0 (adjustable) |
| 设备占地面积 Equipment footprint |
5000mm (长 length)×1000mm (宽 width)×1600mm (高 height) 5000mm (length) ×1000mm (width) ×1600mm (height) |
