用途 Purpose

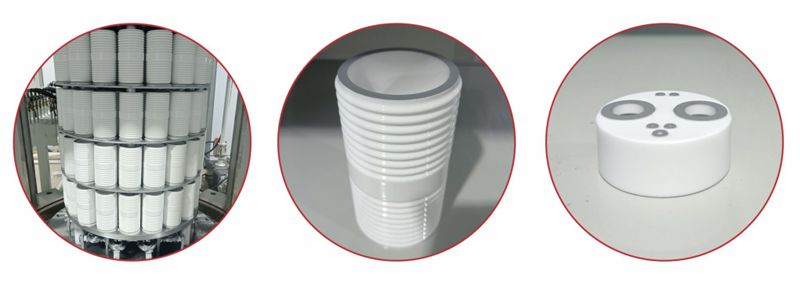

本设备用于陶瓷产品在氢气保护下的金属化烧结。
This device is used for metalization sintering of ceramic products under hydrogen protection.
This device is used for metalization sintering of ceramic products under hydrogen protection.
主要技术指标 Specification
| 测试项目 | 详情 |
|---|---|
| 型式 type |

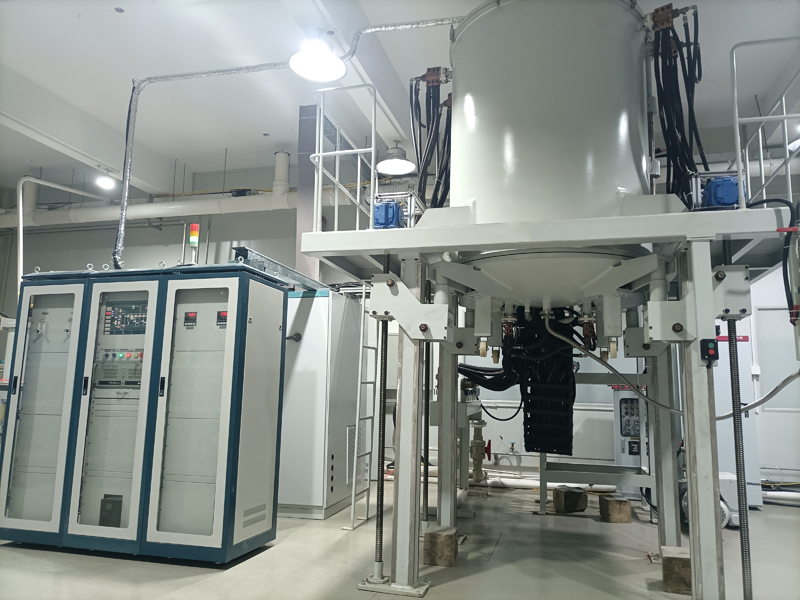

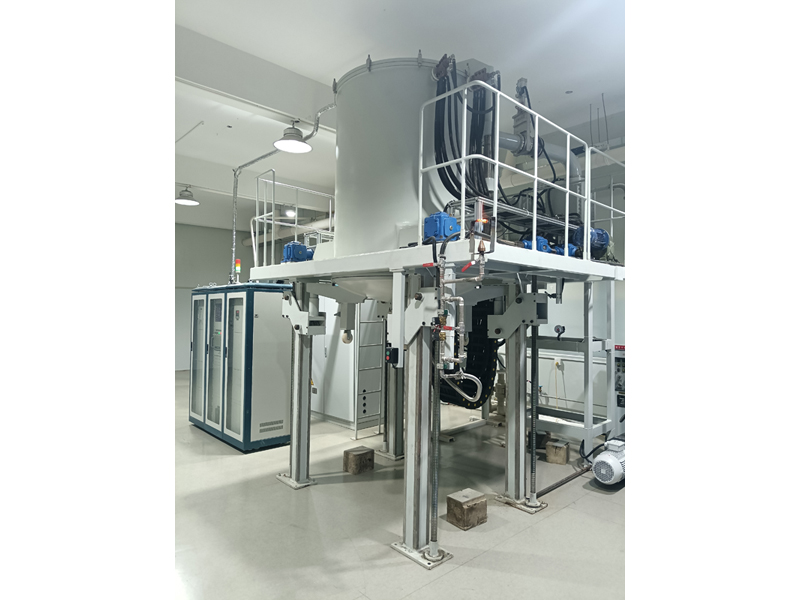

立式，外循环快冷、程控真空高温氢气烧结炉 Vertical, external circulation fast cooling, program - controlled vacuum high - temperature hydrogen sintering furnace |
| 总电源电压 Total power supply voltage |
三相 380V/50Hz 3 - phase 380V/50Hz |
| 加热功率 Power |
250KW |
| 装料方式 loading pattern |
机械式自动升降，底盘升降速度 300mm/min Mechanical automatic lifting, Chassis lifting speed 300mm/min |
| 炉内有效工作区 Effective working area inside the furnace |
Φ600×900（mm） |
| 控温区数 Number of temperature control zones |
三区独立 PID 自动控温 Three zone independent PID automatic temperature control |
| 最高温度 Maximum temperature |
1600℃（空载） 1600℃ (unloaded) |
| 工作温度 Operation temperature |
1550℃ |
| 温度均匀性 Temperature uniformity |
≤±5℃（空炉 1550℃保温 1 小时，使用测温环测温） ≤±5℃ (empty furnace at 1550℃ for 1 hour, use temperature measuring ring to measure temperature) |
| 升温速率 Heating rate |
＞650℃/ 小时 ＞650℃/hour |
| 预真空度 Pre - vacuum degree |
2000Pa |
| 外循环快冷 External circulation rapid cooling |
400℃以下外部循环快速冷却 (400℃至 60℃出炉时间控制在 1.5 小时) External circulation rapid cooling below 400℃ (controlled within 1.5 hours from 400℃ to 60℃) |
