用途 Purpose

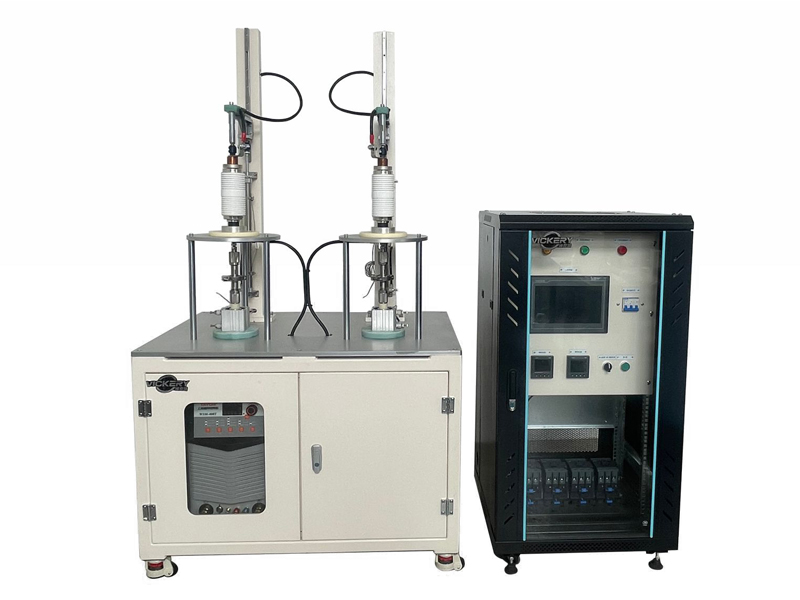

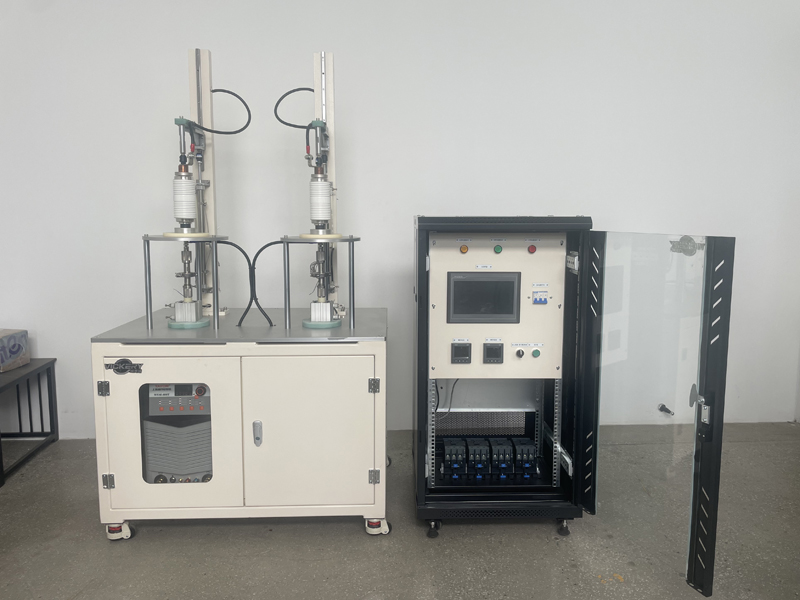

本设备用于高压真空灭弧室老炼工艺。
This equipment is used for the aging process of high - pressure vacuum arc extinguishing chamber.
This equipment is used for the aging process of high - pressure vacuum arc extinguishing chamber.
主要技术指标 Specification
| 测试项目 | 详情 |
|---|---|
| 型式 Type |
双工位，分体式 Dual station, split type |
| 总电源电流电压 Total power supply current and voltage |
三相 380V/50Hz 63A 3 - phase 380V/50Hz 63A |
| 输出电压 Output voltage |
DC 26V |
| 输出电流 Output current |
10 - 400A |
| 有效行程 Effective stroke |
350mm |
| 适用管径 Applicable pipe diameter |
50 - 100mm |
| 适用管长 Applicable pipe chief |
100 - 300mm |
| 设备占地面积 Equipment footprint |
1800mm (长 length)×700mm (宽 width)×1600mm (高 height) 1800mm (length) ×700mm (width) ×1600mm (height) |
