用途

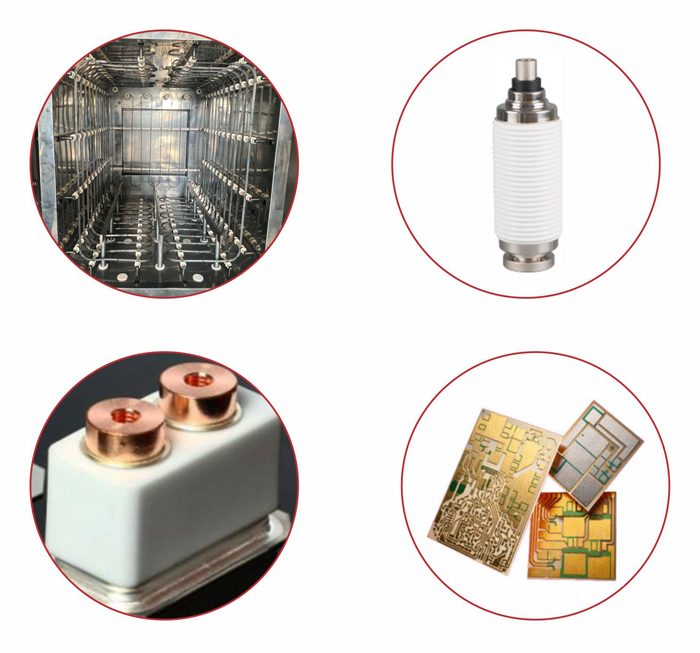

本设备主要用于金属化的陶瓷与金属零件钎焊、去气和退火等工艺。
This equipment is mainly used for processes such as brazing, degassing, and annealing of ceramic and metal parts for metallization.
This equipment is mainly used for processes such as brazing, degassing, and annealing of ceramic and metal parts for metallization.
主要技术指标
| 测试项目 | 详情 |
|---|---|
| 型式 type |

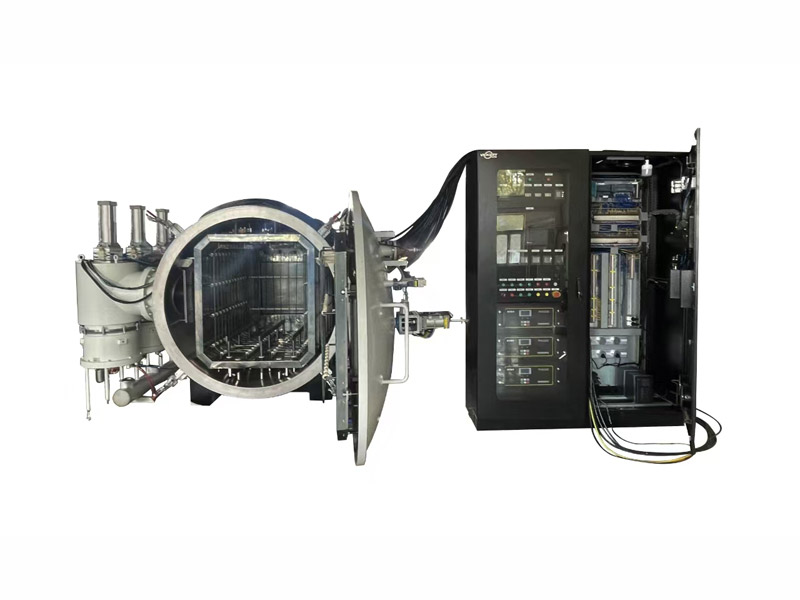

卧式，内循环快冷、程控真空电阻炉 Horizontal, Internal circulation fast cooling, programmable vacuum resistance furnace |
| 总电源电压 Total power supply voltage |
三相 380V/220V 50Hz 3 - phase 380V/220V 50Hz |
| 电力总消耗功率 Total power consumption of electricity |
140KW |
| 其中加热功率 Among them, the heating power |
120KW |
| 炉内有效工作区 Effective working area inside the furnace |
700x700x1000(mm) |
| 设备承重 Equipment load - bearing capacity |
800kg |
| 最高温度 maximum temperature |
1200℃ |
| 工作温度 operation temperature |
1100℃（空烧 2 小时 ，1000℃（2 hours of air burning ） |
| 温度均匀性 Temperature uniformity |
温度极差≤8℃（850℃时保温 30 分钟 ，9 点测温） When the temperature range is less than 8℃ (keep at 850℃ for 30 minutes, measure at 9 o'clock) |
| 冷态极限真空度 Cold state ultimate vacuum degree |
优于 1x10⁻⁴Pa（空炉） Better than 1x10⁻⁴Pa (empty furnace) |
| 热态极限真空度 Thermal limit vacuum degree |
优于 8x10⁻⁴Pa（850℃空炉、保温 1 小时后） Better than 8x10⁻⁴Pa (after 850℃ empty furnace and 1 hour insulation) |
| 压升率 pressure rising rate |
优于 0.067Pa/h（空炉） Better than 0.067Pa/h (empty furnace) |
